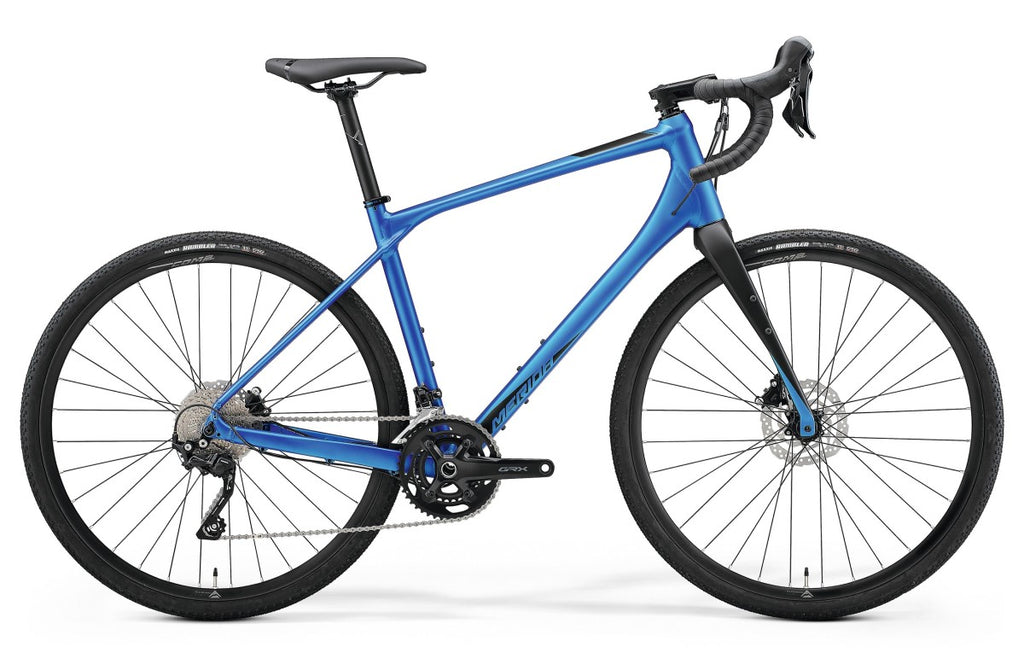

Silex 400
To be fast, you have to be able to slow down. Our SILEX 400 features the super reliable and gravel specific GRX groupset with powerful hydraulic disc brakes. A reliable all-road companion with multiple fixing points for bottles and other gear.

The SILEX 400 is simply crying out for some demanding cycling adventure away from pristine tarmac as well as fully laden bikepacking excursions. The stable handling of the triple butted aluminium frame, paired with our full carbon gravel fork and equipped with Shimano's gravel-specific GRX groupset, means the 400 is super capable on the way up but also on the way back down again. And that is not just down to the fully hydraulic brakes. With the SILEX 400, every road is yours.

There's a certain beauty in just riding without watching the time, heading wherever you feel the urge. For those rides, the test and award-winning SILEX makes total sense; our most comfortable and versatile road bike ever. With its modern MTB inspired geometry, long top and head tubes and short stem, it offers nimble, confidence-inspiring handling. While often seen on extended gravel and rough road outings, as well as bikepacking trips, the SILEX also found a strong following in comfort-orientated road riding connoisseurs as well as commuters and city traffic weavers. The more rugged 650b wheeled alternative to the 700c SILEX has managed to obtain multiple test wins as well as comfort awards, and is coming back in the form of the fully loaded and wirelessly shifted SILEX+ LIMITED. The 'classic' 700c SILEX also impressed the press with the 400 securing a test win in Cycling Plus, being certified as having a 'huge fun factor', 'superb riding position' and 'brilliant off-road handling'.

• Triple butted aluminium frame and full carbon fork
• 700c wheel for well balanced off and on-road capability
• Internal cable routing for a clean and easy to load frame
• Comfort geometry for long hours in the saddle
• MTB inspired handling for superior off-road capability
• Three bottle cage positions and bosses for further luggage capacity on the fork legs

Specifications

• Frame SILEX Lite
  • Material: Aluminium
  • 700x38C / 650Bx45C max.WHS
  • 100x12/142x12mm axle standard
  • BB86 bottom bracket standard
• Frame Size: XS, S, M, L, XL
• Color Matt Blue (Black)
• Fork SILEX CF2
  • Tapered
  • Material: Carbon
  • 700x38C / 650Bx45C max. wheelsize
• Brake Front: Shimano GRX400, Hydraulic Disc
• Brake Rear: Shimano GRX400, Hydraulic Disc
• Rotor Front: Shimano RT10, 160mm
• Rotor Rear: Shimano RT10, 160mm
• Headset: Merida M2331
• Handlebar: Merida Expert GR
  • Material: Aluminium
  • 400mm (XS-S)
  • 420mm (M)
  • 440mm (L/XL)
• Handlebar Stem: Merida Expert CW
  • Material: Aluminium
  • 31.8mm diameter
  • -8° stem angle
  • 80 mm
• Grip: Merida Road Expert
• Derailleur (r): Shimano GRX400
• Derailleur (F) Shimano GRX400
• Seat Post: Merida Comp CC
  • Material: Aluminium
  • 30.9mm diameter
  • 0mm setback
• Saddle: Merida Comp SL, V-mount
• Bottom Bracket: SM-BB71-41B, Pressfit 86.5
• Chain: KMC X10
• Crank: Shimano GRX600, 46-30 teeth, 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL
• Freewheel: Shimano CS-HG50, 11-36 teeth, 10-speed
• Tyre Front: Maxxis Rambler, 700x38C fold TR EXO
• Tyre Rear: Maxxis Rambler, 700x38C fold TR EXO
• Axle Front: Merida Expert SL
• Axle Rear: MERIDA EXPERT SL
  • Including removable lever
  • 6/4mm allen key

Technologies

Prolite 66 Triple Butted Aluminum
When creating high-end aluminium frames, we use our proven PROLITE 66 (6066) aluminium, as it is incredibly light and durable. In addition, it works exceptionally well with our hydroforming technology, allowing us to create complex shapes, featuring triple butted wall thicknesses, an almost carbon-like appearance and the best possible stiffness-to-weight ratio. While lesser alloys might be cheaper, it is the ideal choice for high-performance bicycle frames.

HFS - Hydro Forming System
‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

Smooth Welding
This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

X-Taper Headtube
Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

Internal Cable Routing
On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Down Tube Exit
Down Tube Exit is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

F-Mount
Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

C-Mount
Similar to our F-Mount, where various fixing points for mudguards are part of the frame offering, the C-Mount equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-Mounts are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.

Geometries & Sizes
